Autostop Brake Meter Maxi
Autostop Brake Meter Heavy
Autostop Brake Meter Heavy

Products information

  • Brand: AUTOTEST
  • Model: Autostop Brake Meter
  • Type: Maxi
  • Price Inaproc: Rp. On Request
  • Informasi Lainnya: Harga barang adalah harga loko gudang Jakarta, sudah termasuk pajak-pajak. Belum termasuk Biaya Kirim, Biaya Training dan Uji Fungsi.

Autostop Maxi Brake Meter

AutoStop Maxi Brake Meter (tester) adalah alat pengujian rem portable yang efisien, dirancang untuk menguji pengereman darurat pada mobil penumpang, kendaraan barang ringan dan berat, bus, kendaraan rel ringan dan berat, serta kendaraan transit.

Alat Uji Rem Portable ini sangat membantu untuk menganalisa maupun mengevaluasi kinerja pengereman pada kendaraan berat, Alat uji rem portable ini juga dilengkapi sistem Global Positioning System (GPS).

Features :

  1. Compliant with roadworthy regulations around Australia
  2. Compliant with AS3450/ISO3450 Australian Standard
  3. Compliant with SANS 1589 brake testing
  4. Compliant with SANS 10047 brake testing
  5. Compliant with ECE R13 – Rule 13
  6. Compliant with Federal Regulation FMVSS 135 and FMVSS 571 – USA
  7. Compliant with Transport Canada – CMVSS 135
  8. Calibration that is internationally traceable through NATA (accreditation #20559)
  9. Prints an accurate test report that complies with International Standards
  10. Calculates and displays average and maximum deceleration, distance to stop, test speed and pedal force required to stop the vehicle
  11. 12 month calibration interval
  12. Data logging and download to PC through USB or Bluetooth – USB cable included
  13. Built in GPS/Glonass receiver providing the latitude and longitude of test position
  14. Uses AutoTest Paper Roll Pack

Optional Features:

  1. GPS or Glonass or Galileo positioning receiver, providing longitude and latitude.
  2. USB and Bluetooth interface
  3. Stores over 100 test results with USB or Bluetooth
  4. Numerous user-entry hardware and software options
  5. Graphical output

AutoStop Maxi adalah perangkat pengujian rem portable elektronik. Sepenuhnya sesuai dengan persyaratan Otoritas Transportasi, AutoStop Maxi dirancang untuk menguji pengereman darurat kendaraan berat dan bergerak cepat 40km/jam. AutoStop Maxi brake performance tester mengukur rata-rata dan deselerasi maksimum, jarak berhenti dan kecepatan uji, serta gaya pedal yang diperlukan untuk menghentikan kendaraan.

Penguji Rem Berat AutoTest memastikan kepatuhan terhadap standar AS3450 dan menyediakan data penting untuk mengevaluasi kinerja Rem pada kendaraan berat dan bergerak lambat, serta kendaraan pertambangan.

  1. Calculates and displays average and maximum deceleration, distance to stop, test speed and pedal-force required to stop the vehicle.
  2. Calculates and displays MFDD (Mean Fully Developed Deceleration) in accordance with ECE Reg 13

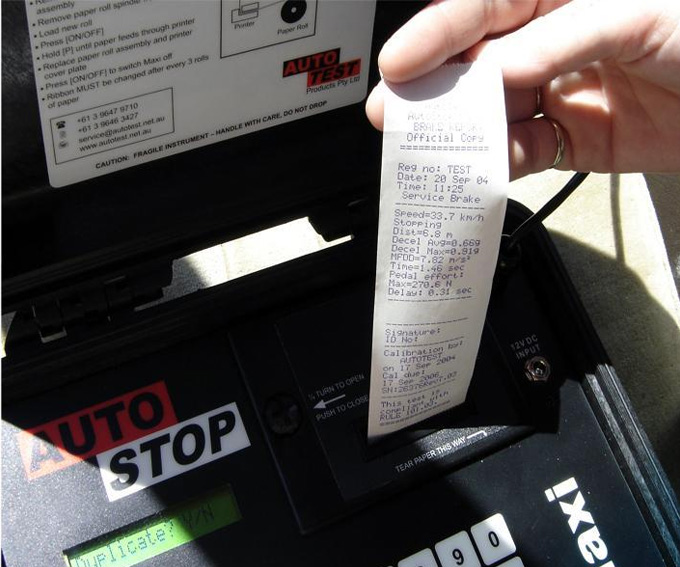

  3. Prints two original reports (one for the customer, the other for the examiner) as a permanent record of the test results, date, time, examiner’s ID number and the vehicle’s registration/VIN number.
  4. Price Competitive
  5. Lightweight (3.0kg), compact (123 x 267 x 246mm) and portable
  6. Robust construction that is water resistant and petrol, chemical and acid proof
  7. Conventional (QWERTY) keypad lay-out, with tactile membrane cover.
  8. LCD display
  9. Adjustable display control
  10. Both metric and imperial units of measurement
  11. Built-in integrity check
  12. Rechargeable, sealed, acid-gel battery, with low battery level indicator and automatic shut-down
  13. Internationally traceable Calibration (NATA)
  14. 12-month calibration interval
  15. 12-month warranty
  16. Low-cost spare parts, accessories, and consumables
  17. Comprehensive after-sales service and assistance
  18. Internet support hotline
  19. Position acquisition time – 1 Min Maximum
  20. Software configurable

Setelah kendaraan berhenti, penguji rem mengevaluasi kinerja rem dan mencetak hasil pengujian. AutoStop® Heavy hadir dengan fasilitas pencatatan data yang memungkinkan pengujian tersimpan diunduh ke PC untuk disimpan dan dianalisis. Dengan memberikan laporan yang akurat dan mengonfirmasi kinerja pengereman, perusahaan dapat melindungi personel dan memastikan bahwa kendaraan mematuhi masalah Kesehatan & Keselamatan Kerja (K3).

AutoStop® Heavy mampu memberikan bukti fisik kinerja rem sebelum dan sesudah perubahan kendaraan, mengurangi risiko.

Step-1 Step-2 Step-3 Step-4

AutoTest Maxi Brake Tester Records:

  1. Date and Time of Test: The AutoTest Maxi Brake Tester records the exact date and time when a brake test is conducted.
  2. Machine Description: It captures entered details such as the machine’s serial number and machine hours.
  3. Brake Testing Instrument Description: This includes information about the brake testing instrument used, including its model, version, calibration date, and traceability.
  4. System Response Time (Brake Delay): The time it takes for the brake system to respond after the brake pedal is applied.
  5. Brake Capability: Evaluates the overall braking capacity of the vehicle.
  6. Brake Performance: Measures the effectiveness of the brakes during the test.
  7. Initial Velocity/Speed: Captures the initial speed of the vehicle before braking.
  8. Person Conducting Test: Records the individual responsible for conducting the brake test.
  9. Person Verifying Test/Results: Documents the person who verifies the test results.

AutoStop Maxi-GPS Brake Meter measures average and peak deceleration, stopping distance, test speed and the brake pedal pressure required to stop a vehicle. There are 4 easy testing steps with AutoStop Maxi-GPS:

  1. STEP 1: Secure the AutoStop Maxi-GPS in the vehicle with its strap or optional floor-mounted magnet in a horizontal position with the lid open and facing forward. Attach the load cell to the brake pedal to test the service brakes.
  2. STEP 2: Turn on the AutoStop Maxi-GPS and enter examiner’s ID and the vehicle’s registration number. Press Start. Accelerate the vehicle to the required speed.
  3. STEP 3: Apply the brakes by pressing your foot on the load cell attached to the brake pedal, until the vehicle is stationary.
  4. STEP 4: After the vehicle has come to a stop, the AutoStop Maxi-GPS evaluates the brake performance and displays and prints the test results.

Ringkasan Regulasi

  1. The UNECE (United Nations Economic Commission for Europe) has published a table of Brake Regulation Requirements for every country.

Type of Vehicle:

  1. Passenger Cars, Light good Vehicles, Heavy Good Vehicles, Buses, Light Rail vehicles, Transit Vehicles.

Autostop Maxi GPS:

  1. AutoStop® Maxi GPS is the enhanced version of the classic Maxi, featuring built-in GPS, USB, and Bluetooth capabilities for seamless integration and precise performance measurement.
