Alat Uji Rem, Timbangan & Kincup Roda
Alat Uji Rem, Timbangan & Kincup Roda
Alat Uji Rem, Timbangan & Kincup Roda

Products information

  • Brand: COSBER
  • Model: C-BTT8X COMBI
  • Type: COMBINATION
  • Price Inaproc: Rp. 1.220.889.000
  • Informasi Lainnya: Harga barang adalah harga loko gudang Jakarta, sudah termasuk pajak-pajak. Belum termasuk Biaya Kirim, Instalasi, Pembuatan Pondasi, Kalibrasi, Biaya Training dan Uji Fungsi.

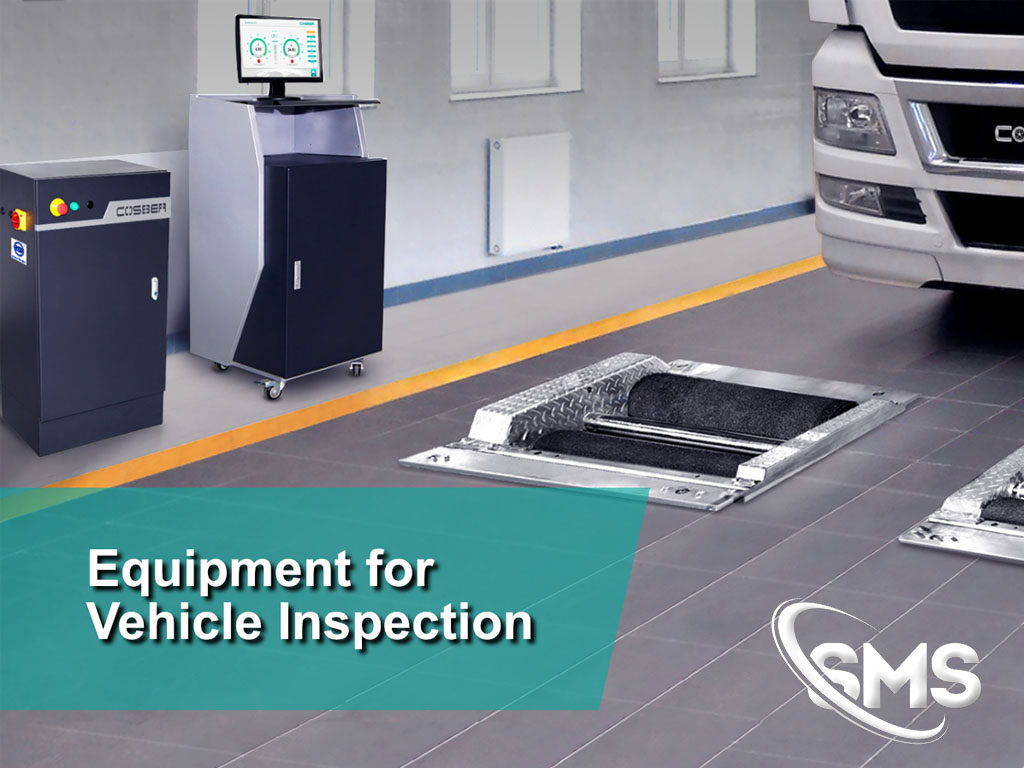

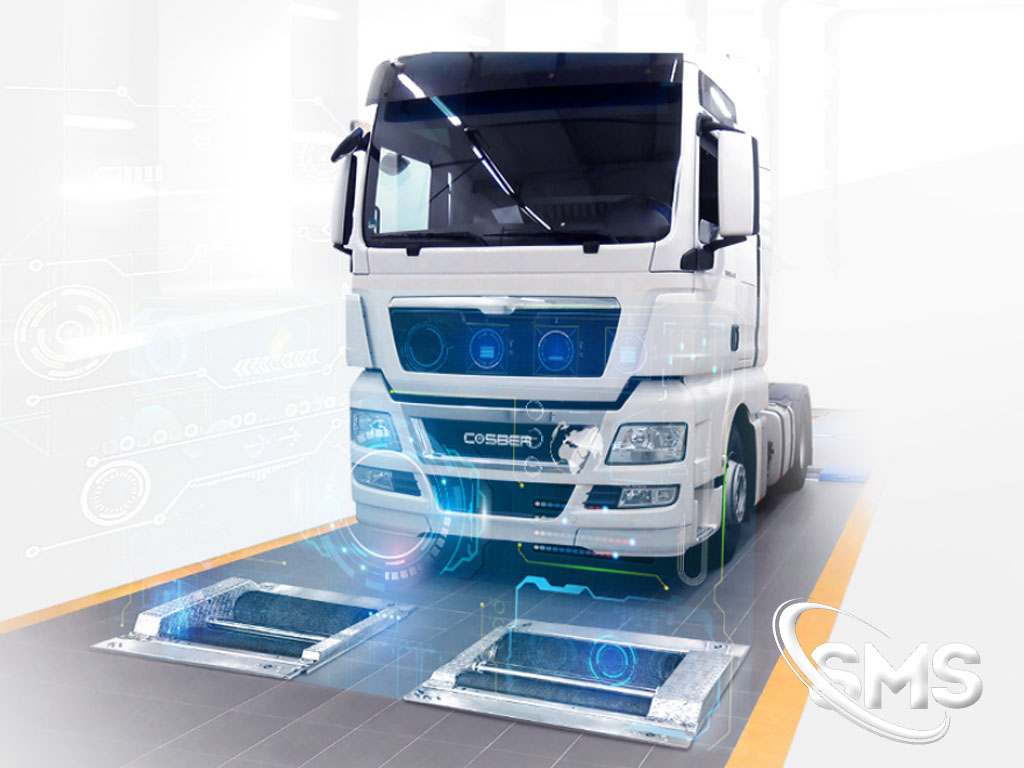

Roller Brake, Axle Load Dan Side Slip Tester

Cosber memiliki rangkaian lengkap alat pengujian rem yang berbeda untuk kendaraan berat yang mengikuti pedoman pabrikan mobil dan standar pengujian. Rangkaian produk modular ini memungkinkan banyak kombinasi untuk memenuhi permintaan pelanggan dan dapat diperluas ke jalur pengujian yang lengkap.

Alat Uji Rem, Timbangan dan Kincup Roda Untuk pengujian kendaraan bermotor dengan kapasitas up to 18 Ton

Scope of delivery :

  1. Hot dip galvanized left and right roller set
  2. Max. drive over/axle load 18t
  3. Low-wear corundum rollers 1000mm
  4. Adjustment screws for height adjustment
  5. Wear-free, electronic measuring system
  6. Speed sensors
  7. All truck brake testers are prepared for upgrading the 8-point-weighing system
  8. Truck brake tester fits in all common pits
  9. All brake tester can be extended to test lane
  10. Compact control box
  11. Manual / automatic mode, delayed automatic switch-on
  12. Start-up monitoring, slip shut-off and shutdown after drive out
  13. Optimized test procedure also suitable for electronic parking brakes
  14. Powerful 9kW motors
  15. Electromagnetic brake as drive out support
  16. Two test speeds (2,5 and 5km/h)
  17. Four-wheel drive kit, ideal for 4x4 vehicles
  18. Lockable main switch
  19. Large easy-to-read analog display with 2x255 mm (300°) clocks
  20. Analog display with 16-digit LED display
  21. ASA-Livestream
  22. Swivel arm for analog display

Lifting Device (Control Box)

  1. Remote control for hydraulic load simulation (Option)
  2. Control box for hydraulic load simulation (Option)
Lifting Device Lifting Device

Indicator display :

  1. Brake Force
  2. Operating mode: Manual, Automatic, 4x4
  3. User guide
  4. Weight in kg (if weight sensors included)
  5. Digital difference displayed in % at LED display
  6. Road adhesion % for suspension tester
  7. Difference for side slip tester in m/km
  8. Status lights for different operating modes

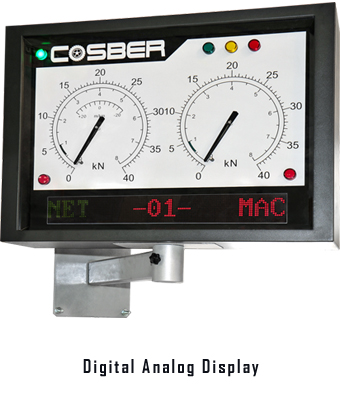

PC_Cabinet Digital Analog

Aksesori seperti 4WD, tampilan analog, dukungan drive out, dan versi remote control radio tersedia. Karena transportasi yang sangat berkembang di seluruh dunia, bisnis transportasi membutuhkan semakin banyak kendaraan yang beroperasi di jalan raya. Oleh karena itu, keselamatan, khususnya salah satu kendaraan komersial heavy duty (Truck) menjadi isu utama dalam pengujian kendaraan. Bagaimana mendekati hasil tes kinerja keselamatan kendaraan yang paling nyata juga menjadi tanggung jawab sosial bagi Pemerintah selaku pemangku kebijakan atas kelaikan jalan.

Weight Sensor Cover Plate

Hydraulic Load Simulation :

  1. Hydraulic lifting function with height of 200mm and improved testing of multi-axis vehicle
  2. Controlled by radio remote control
  3. Suitable for almost all trucks and trailer
load simulator-1 load simulator-1 load simulator-1 load simulator-1

Optional Accessories :

  1. Assembly frame for track width 2700mm
  2. Assembly frame for track width 2800mm
  3. Assembly frame for track width 2900mm
  4. Assembly frame for pit
  5. Pit cover plate for 2700mm assembly frame
  6. Pit cover plate for 2800mm assembly frame
  7. Pit cover plate for 2900mm assembly frame
  8. Pit safety GSQ1 (2,5m)
  9. Pit safety GSQ2 (1,5m in front and 2,5m after roller set center)
  10. Pit safety GSQ3 (2,5m in front and 2,5m after roller set center)
  11. Air pressure sensrs-Set (PM-PX-PX2)
  12. PC connection with PC visualization (truck standard software)
  13. PC connection with PC visualization (including car software)
  14. Motorcycle kit (cover plate incl. software)
  15. Radio remote control
  16. Pedal force sensor (radio version)
  17. 8-point-weighing system
  18. Roller cover plates (set)
  19. Post for analog display or control box
  20. Movable PC trolley (empty) for customer PC
  21. Hydraulic lifting device retrofit (only on request)

Specification :

  1. Coefficient of friction dry/wet : > 0,7 / > 0,6
  2. Fuse protection: 3 x 63 A slow-blow
  3. Motor power:
    1. C-BTT5X 2 x 9 kW
    2. C-BTT6X 2 x 11 kW
    3. C-BTT7X 2 x 15 kW
    4. C-BTT8X 13 / 17 kW
  4. Power supply: 3 x 400 V, N, PE 50 Hz
  5. Brakeable performance max. 25 kN
  6. Test speed: 2,5 / 5,1 km/h
  7. Max. drive-over load: 13000 kg
  8. Roller height difference:
    1. C-BTT-5X/6X: 30mm
    2. C-BTT-7X/8X: 50mm
  9. Roller elevation: 30 mm
  10. Rollerset Height: 686 / 630 mm
  11. Rollerset Width: 1040 mm
  12. Roller length: 1000 mm
  13. Roller diameter: 208 mm
  14. Rollerset Length: 1291 mm
  15. Track width: 1000 - 3000 / 1100 - 3100 / 1200 - 3200 mm
  16. Display cabinet Measuring range: 0 - 40 kN
  17. Brake tester Test weight per axle (at 50% braking ratio): 11,0 t
  18. Dimension:
    1. C-BTT-5X/6X: 3220 x 1040 x 868 mm
    2. C-BTT-7X/8X: 3490 x 1240 x 806 mm
  19. Weight of mechanic:
    1. C-BTT-5X/6X: 1500 kg
    2. C-BTT-7X/8X: 1700 kg
